JAOS BATTLEZ UP SUSPENSION SET VFAS DELICA D:5 13+ 4WD DT

Genuine JAOS lift up suspension kit for diesel Delica (CV1W)

PART NUMBER: A732305D

Compatible to: Diesel model, 2013.01 - 2019.02
NOT compatible to: 2WD vehicles, or ROADEST models, diesel vehicles manufactured after February 2019 (new Delica D:5)

This lift-up kit combines coil springs made with titanium alloy and guaranteed against sagging, with high-performance dampers featuring the Harmoflex® mechanism.
The rear dampers are equipped with a 14-way damping mechanism.

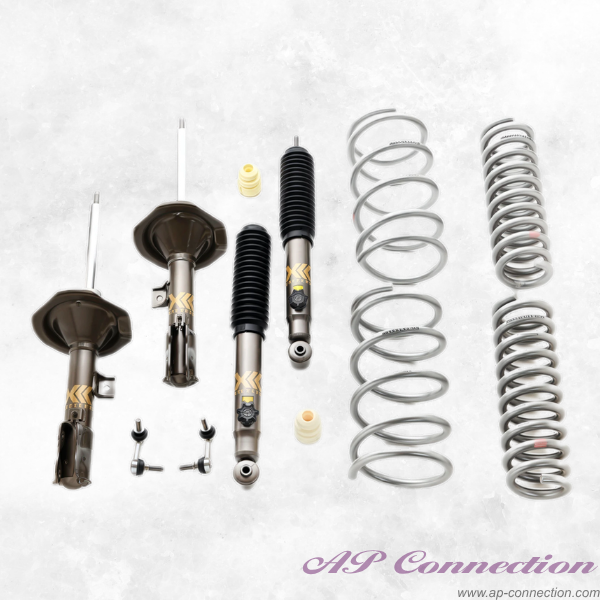

Kit includes:
- Front coil springs
- Rear coil springs
- Front dampers
- Rear dampers

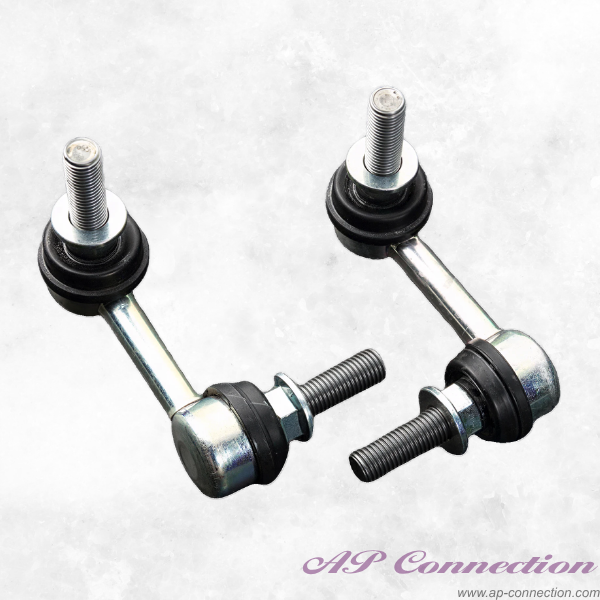

- Rear short stabilizer links (Non-adjustable)

Lift-up:
- Front 20-25mm,
- Rear 20-30mm

Spring diameter:
- F 16.2 Φ
- R 16.5 Φ

Spring rate:
- F 37 N/mm
- R 73 N/mm

Shock absorber:
Front: Low-pressure gas twin-tube damper
 Rear: Low-pressure gas twin-tube damper, Harmoflex® mechanism

Damping force adjustment:
Front: Fixed type
Rear: 14-step dial adjustable type

Damping force:
Front: Rebound damping increased by 23%, compression damping increased by 45% (0.3m/sec/compared to genuine part)
Rear: Rebound damping increased by 60% to 100%, compression damping increased by 0 to 10% (0.3m/sec/compared to genuine part)

Stroke:

- Front +17mm
- Rear +14mm

Body diameter:
- Front 50.8φ
- Rear 54φ

Piston diameter:
- Front 32φ
- Rear 30φ
